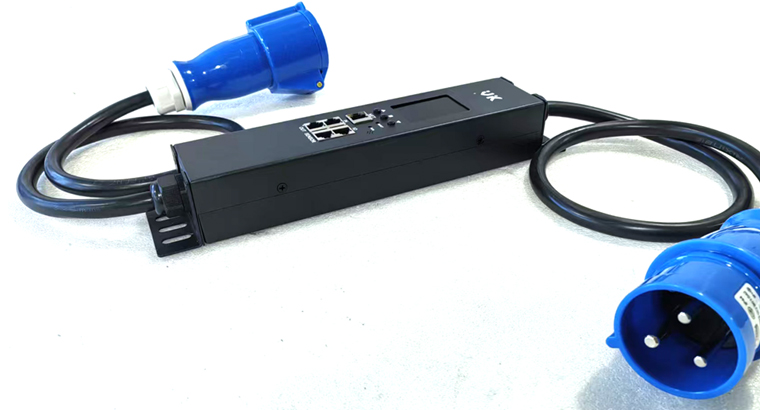

Inline Energy Meter Single-phase and three-phase 16A 32A

The input voltage (V), current (A), power (kW) and energy (kWh) can be locally displayed through the LCD/LED meter, and reliable power distribution is provided. IT provides power utilization data, enabling data center managers to safely install new equipment in cabinets and make informed decisions based on the actual scale of the IT environment to reduce total costs.

0U Vertical 8xC13 Locking Outsles Intelligent PDU

Intelligent PDU(Metered / monitored & switched outlets),Designed as required and custom-produced. Models in VK's Switched PDU Series provide network-grade power distribution, remote/local monitoring, and outlet control. A Switched PDU allows for remote management, monitoring of PDU vitals, and control of outlets and networked clients. Power status can be monitored over the network, using the VK Management Console and the RJ45 Ethernet port, or locally by using the digital LCD meter. With the VK Management Console, PDU outlets can be switched on and off to remotely reboot connected equipment.

2U Horizontal 230V 32A 16C13 Outputs Intelligent PDU

2U Horizontal 230V 32A 16C13 Outputs Intelligent PDU（ Metered / monitored & switched outlets），Each output is a small switch with a light. 1. Provide HTTPS management, support TLS encryption authentication. 2. Provide SNMP v3 Agent, support DES or AES certification. Provide MD5 or SHA private encryption. 3. Support Telnet and SSH. 4. Support network firewall. provide packet filtering, anti- PING and other network protection.A more reliable level of network security. 5. Provides NTP time synchronization settings. 6. Provides run, event log and power time record. 7. Provide PDU configuration download and upload function, easy to set up.

VK Easy Rack PDU, Switched, 1U, 1 Phase, 4kW, 250V, 16A, 8x Schuko outlets, IEC60320 C20 inlet

This VK Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8) Schuko. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

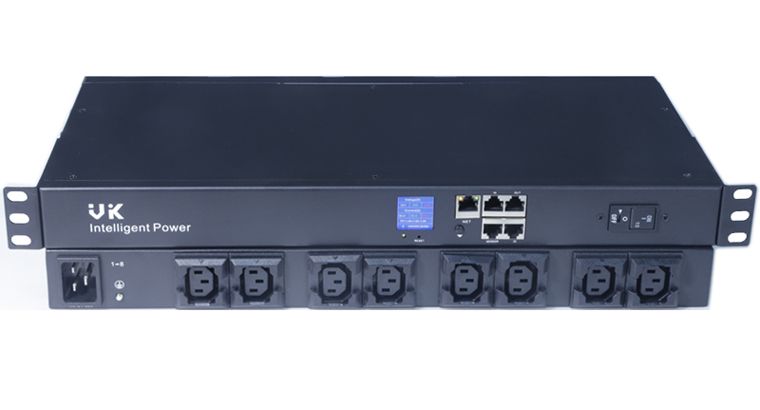

VK Easy Rack PDU, Switched, 1U, 1 Phase, 4kW, 250V, 16A, 8x C13 Locking outlets, IEC60320 C20 inlet

This VK Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13 locking. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

1U Horizontal 12xC13 Outputs Intelligent PDU

This VK Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (12)C13 locking. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

VK Easy Rack PDU, Switched, 1U, 1 Phase, 4kW, 250V, 16A, 8x C13 outlets, IEC60320 C20 inlet

This VK Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

VK Easy Rack PDU, Switched, 1U, 1 Phase, 2.5kW, 250V, 10A, 8xAustralian outlets, IEC60320 C14 inlet

This VK Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)AU. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

VK Easy Rack PDU, Switched, 1U, 1 Phase, 2.5kW, 250V, 10A, 8x C13 Locking outlets, IEC60320 C14 inlet

This VK Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13 locking. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

VK Easy Rack PDU, Switched, 1U, 1 Phase, 2.5kW, 250V, 10A, 8x C13 Locking outlets, IEC60320 C14 inlet

This VK Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13 locking. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

VK Easy Rack PDU, Switched, 1U, 1 Phase, 2.5kW, 250V, 10A, 8x C13 outlets, IEC60320 C14 inlet

This VK Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

VK Easy Rack PDU, Switched, 1U, 1 Phase, 10A,8xNEMA5-15R, IEC60320 C14 inlet

This VK Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)NEMA5-15R. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

VK Easy Rack PDU, Switched, 1U, 1 Phase, 2.5kW, 250V, 10A, 8x C13 outlets, IEC60320 C14 inlet

This VK Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

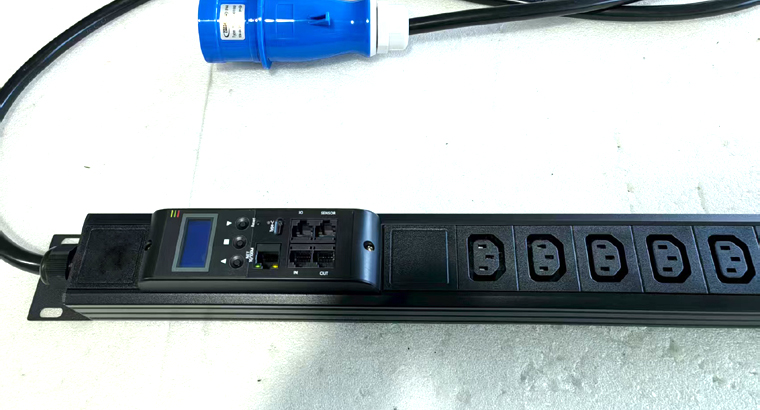

IP 485 PDU，Single phase, three phase new meter ,Monitored PDU

VK Monitored Power Distribution Units (PDUs) provide network-grade power distribution and remote/local monitoring. Power status can be monitored over the network, using the VK Management Console and the RJ45 Ethernet port, or locally by using the digital LCD meter. Features of the Monitored PDU Series include upgradeable firmware, SNMP network interface, durable metal housing, and horizontal/vertical mounting. Monitored PDUs have a switch-free design, network-grade plugs and outlets, a power cord.

0U 16A/32A 24 Outputs Intelligent PDU

Metered / monitored & switched outlets. ☑ Provide HTTPS management, support TLS encryption authentication. ☑ Provide SNMP v3 Agent, support DES or AES certification. Provide MD5 or SHA private encryption. ☑ Support Telnet and SSH. ☑ Support network firewall. provide packet filtering, anti- PING and other network protection.A more reliable level of network security. ☑ Provides NTP time synchronization settings. ☑ Provides run, event log and power time record. ☑ Provide PDU configuration download and upload function, easy to set up.

2U Intelligent PDU total monitoring C13 and C19 locking

C20 Input,8xC13,1xC19 locking output,16A Liquid magnetic circuit breaker. 2U structure design. Total monitoring PDU.
